Ultra-high-speed Intelligent Universal Gang Programmer

Discontinued

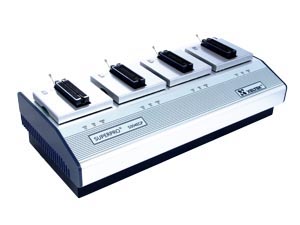

Ultra-high-speed Intelligent Universal Gang Programmer

{model}

    Features:

  • This product is reduced from the SUPERPRO/5004GP. Support devices less than SUPERPRO/5004GP, other function is equal to it.
  • Support devices with Vcc from 1.2V to 5V.
  • Extremely fast speed.  P+V 64 Mb NOR FLASH memory in 11.3 seconds.
  • 4 isolated programmer modules based on SUPERPRO 5000 working asynchronously. Each module is built with 144 universal pin-drivers. Universal adaptors are available for varies packages up to 144 pins. New device support will be easier.
  • Controlled by a PC via USB2.0 (high speed) .
  • ISP/ICP programming capability available via ISP/ICP adaptor
  • Only IC manufacturer approved programming algorithms are used for high reliability. ±5% and ±10% Vcc verification enhances programming reliability.
  • Advanced and powerful functions.
  • Production mode start chip operation at the moment the chip is inserted in the socket properly.
  • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
  • Password can be set for project files and production volume control
  • Batch command combines device operations like program, verify, security into a single command at any sequence.
  • Serial numbers generators are available as standard or customer-specific functions.
  • Log file is useful for quality tracking.
  • Over-current and over-voltage protection for safety of the chip and programmer hardware.
  • WINDOWS XP/VISTA compatibility/Win7

 Device  P+v (s)

 Compare with SP3000U

 type

 K8P6415UQB  9.1(P)+2.3(V)= 11.4(s)  25.1(P)+16.8(V)=41.9(s)  64Mb NOR FLASH
 AM29DL640G  20.5(P)+2.3(V) =22.8(s)  38.5(P)+11.8(V)=50.3(s)  64Mb NOR FLASH
 AT28C64B

 0.8(P)+0.1(V)= 0.9(s)

 1.2(P)+0.8(V)= 2.0(s)

 64Kb EEPROM

 24AA128

 2.7(P)+1.8(V)= 4.5(s)

 5.0(P)+4.0(V)= 9.0(s)

 128Kb SPI EEPROM

 QB25F640S33B60

 29.0(P)+14.4(V)= 43.4(s)

 55.2(P)+41.4(V)= 96.6(s)

 64Mb SPI EEPROM

 AT89C55WD  2.5(P)+0.4(V)=2.9(s)  3.3(P)+1.0(V)=4.3(s)

 20KB FLASH MCU

 ST72F324BK4B5  2.6(P)+1.3(V)=3.9(s)  18(P)+7(V)=25(s)  32KB FLASH MCU
 Upd78F9234  2.6(P)+1.3(V)=3.9(s)  38(P)+16(V)=54(s)  16KB FLASH MCU
  • All orders received before noon Beijing Time will begin processing the same business day.


    Device Updates:

  • XELTEK updates software and device algorithm regularly.
  • View the latestDevice List .
  • Download the current software version free of charge .
  • Updates are available by mail at a nominal charge.
  • XELTEK also adds devices upon customer's request at its option.


    Warranty Support:

  • Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.
  • Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (Beijing Time).




  • Hardware & Electrical Specifications:


  • Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR flash), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU.
  • Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP, ...
  • PC interface: USB2.0
  • Stand-alone Feature: None
  • Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/6A; power:15W
  • Mechanical parameter: Main unit: Size: 438*216*94 mm Weight: 4.3Kg.
  • Packing Box: Size 550*252*145 mm Weight: 5.9 Kg.



  • Accessories:

  • Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (include: install software, user manual), register card
  • Optional accessories: adaptor in varies packages.
