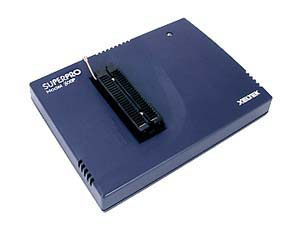

SUPERPRO/610p

USB Interfaced Ultra-high Device Programmer

An economical universal programmer. adopt SUPERPRO/6000's kernel, DIP48 full-driver interface.

Key Features:

As of today, supports 249 manufacturers, 34157 programmable devices.
Support devices with Vcc from 1.2V to 5V.
Extremely fast speed hign than SUPERPRO/500P.
Built with 48 universal pin-drivers.
PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.
Advanced and powerful functions.
Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
WINDOWS XP/Vista compatibility/Win7/Win10

Device Support: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU.
Package Support: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , ...
Communication Interface: USB2.0
Standalone Mode: Not available
Power Supply: Input AC 100-240V; Output 12V/2A, Power: 15W
Unit Dimensions: 178*130*40 Weight: -kg
Packaging Dimensions: 320*300*85 mm; Gross Weight: 1.8kg
Standard Configuration:
- Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, register card
- Optional accessories: adaptor in varies packages.
