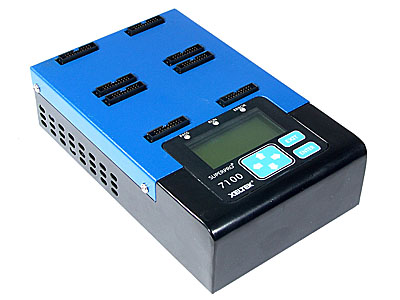

Advanced  On-line /Off-line programmer


Advanced On-line /Off-line programmer



    •  Same programming engine with SuperPro / 7000
    • Ultra-high programming speed.
    • Programs four devices in parallel.
    • PC hosted, network and stand-alone triple modes operation
    • Manage up to 8 programmers in one GUI
    • Industry grade quality and reliability.

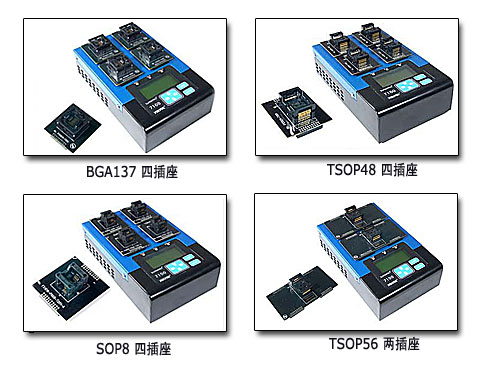

    SUPERPRO 7100 socket


    • Same programming engine with SuperPro/7000.
    • Ultra-high programming peed. 10 times higher than SuperPro/5000 for eMMC.
    • Industry grade quality and reliability. IC manufacturer approved programming algorithms.
    • Supports eMMC, NAND FLASH, NOR FLASH, Serail EEPROM/FLASH/NAND etc. Supports devices with Vcc as low as 1.2V.
    • Support up to 4 chips in parallel.
    • Many safety mechanisms are built including self-calibration, self-diagnosis, wrong chip placement detection, poor-pin-contacting detection, ID checking, over-current and over-voltage protection etc.
    • Triple operation modes for various application requirements.
      PC hosted mode. The programmer is controlled by PC via USB2.0;
      Stand-alone mode. The programmer is controlled via a 6-Key keypad and a 20 character by 4 line LCD display. A SD card is used to store the project files.
      Network mode. With the LAN port it’s an easy job to connect the programmer to LAN or Internet.
    • Advanced and powerful software functions.
             Production mode starts chip operation at the moment the chip is inserted in the socket properly .
      Project function simplifies processes such as device selection, file load, device configuration setting, program option, and batch file setting into one touch step.
      Barcode management automatically load project files to avoid manual mistakes.
      Password can be set for project files and production volume control
      Batch command combines device operations like program, verify, security into a single command at any sequence.
      Dynamic buffer makes it possible that each chip is programmed with different data file. Applications including serial number, MAC address etc.
      Log file and statistic table for quality tracking.
      File Security by SD card and project file passwords, volume limit and network remote control.
      Gang expansion Up to 8 programmers can be managed under one GUI as one concurrent production programmer.
    • WINDOWS XP/Vista/Win7/ Win8 compatibility.


    Electrical and Mechanical Specification

    • PC Interface  USB2.0(high speed)LAN(100M)
    • Stand-alone Storage MediaSD card
    • Keypad and Display: 6 key keypad, 20Character x4lLine LCD
    • Power Supply: AC Adaptor Input AC 100V- 240V; Output: 12V/1.5A
    • Main Unit  Dimensions184 x 160 x78 mm
    • Weight:     0.8 Kg
    • Package:    Dimensions: 310 x 250 x145 mm;
    • Weight:    1.65 Kg
    • Temperature: 0-40°C
    • Humidity    20%-80%


    Items Included

    • SuperPro 7100 Programmer main unit
    • AC adapter
    • Software CD
    • USB Cable


    Optional Accessaries

    • Socket adaptors in various packages
    • SD card for stand-alone operation

  • All orders received before noon Beijing Time will begin processing the same business day.

    Device Updates:

  • XELTEK updates software and device algorithm regularly.
  • View the latestDevice List .
  • Download the current software version free of charge .
  • Updates are available by mail at a nominal charge.
  • XELTEK also adds devices upon customer's request at its option.

    Warranty Support:

  • Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.
  • Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (Beijing Time).

  • Hardware & Electrical Specifications:

  • Supported devices: FLASH memory (NOR & NAND),SPI Nand Flash,eMMC
  • Packages supported: TSOP48,TSOP56,BGA63,BGA107,BGA137,BGA153,BGA162,BGA169, ...
  • PC interface: USB2.0 LAN
  • Stand-alone Feature: Supported, SD Card
  • Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/1.5A; power:15W
  • Mechanical parameter: Main unit: Size: 184 * 160 * 78 mm Weight: 0.8Kg.
  • Packing Box: Size 310 * 250 * 145 mm Weight: 1.65 Kg.

  • Accessories:

  • Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (user manual), register card
  • Optional accessories: adaptor in varies packages, SD card for stand-alone operation.
